Principal: Metaspace (Beijing) Air Dome Corp
Key Product: Air Dome
Application: Warehouse for raw materials such as bauxite, coal (power plant), alumina, SPL, and other materials as well as other minerals.
• Established in 2006 in Beijing, China. Subsidiary company of Beijing Enterprises Group (a state-owned company);
• Has 102 employees and production center in China;
• The brand was originally from Canada;
• Committed to promoting green air dome technology, advanced architectural concepts and quality life experience;
• Listed on NEEK stock market in 2014 with code of 831527;
• Has been awarded with the “Climate Slover” price by WWF (World Wildlife Fund);
• Has built over 230 air domes in China.
MetaSpace Zhejing Production Center
Total investment USD$17 million ,
Total area:50,000 sqm
Fabrication capacity: 5 million sqm membrane per year

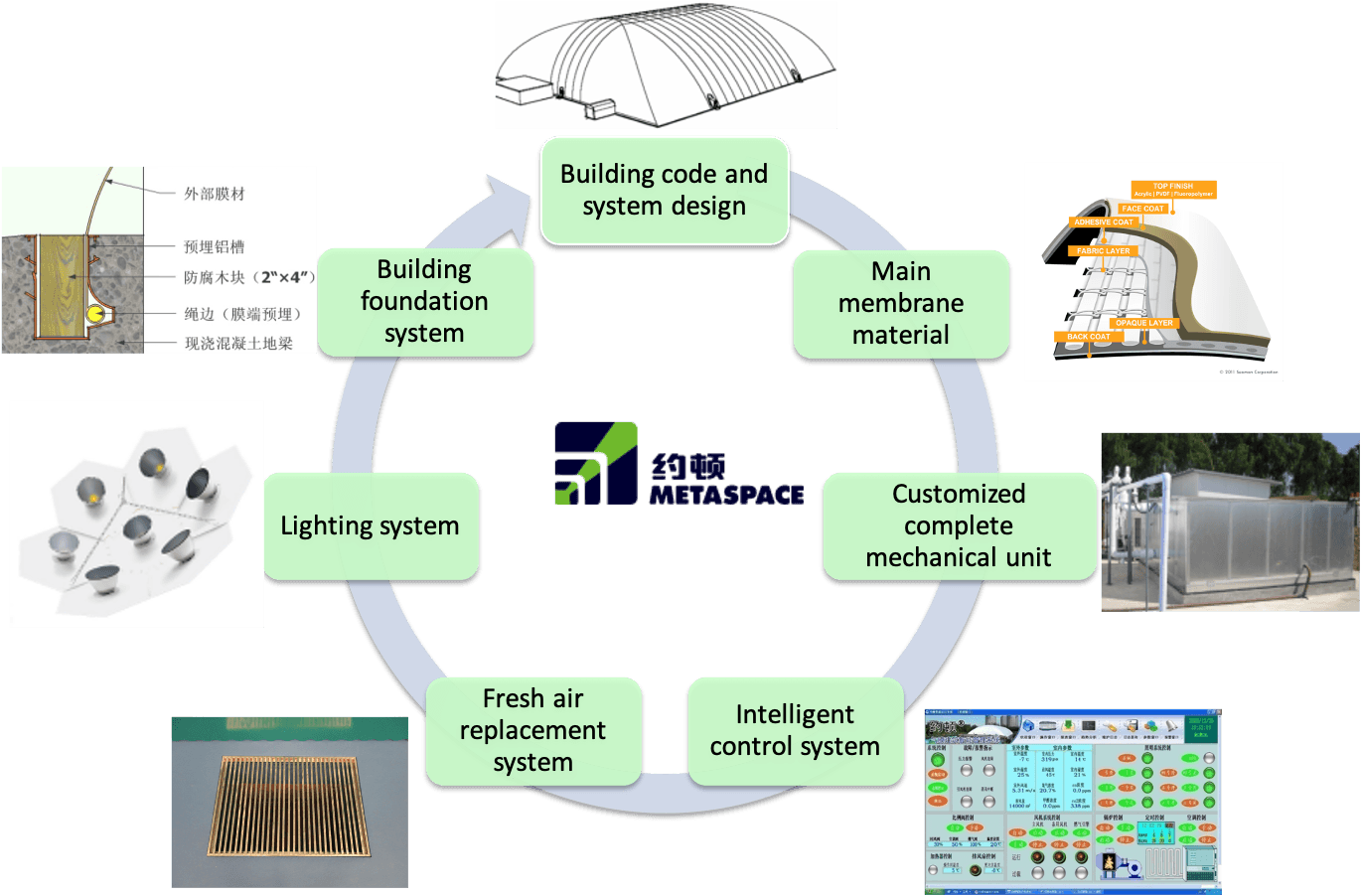

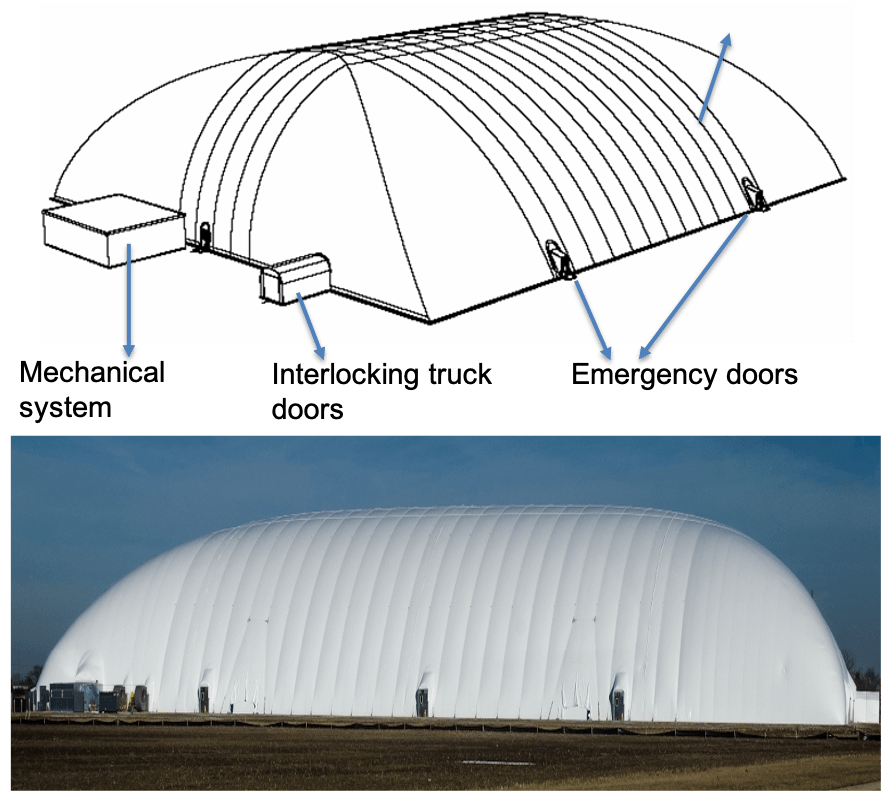

Air dome is a new type of building that can be built in the shortest time and save building materials and operation energy consumption. It uses high-quality building fiber membrane material as the "shell" of the building. A set of intelligent mechanical and electrical equipment supplies air to the interior of the air membrane and forms a positive pressure(200-500Pa). The "shell" is supported by the air pressure difference between indoor and outdoor to form the main body of the building. There is no need for any frame or beam support indoors.

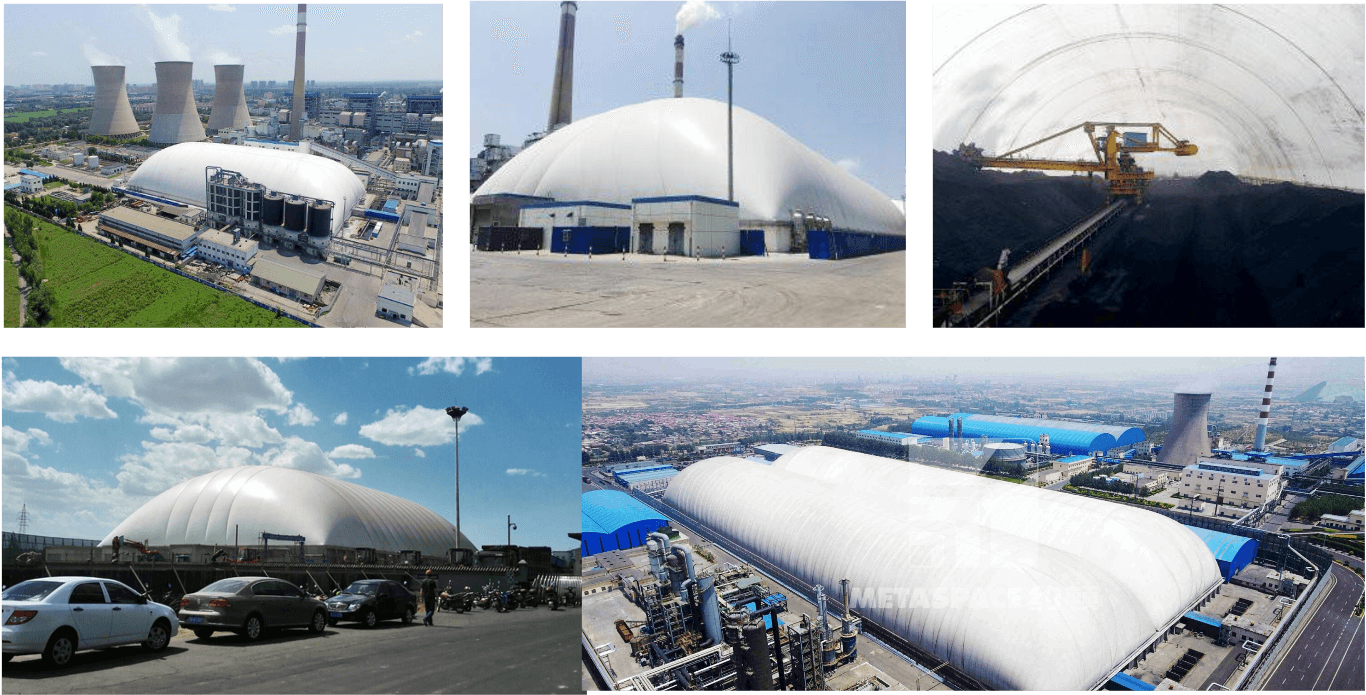

Air domes have been widely used in recreational (gymnasia), and industry (warehouses) , especially as coal warehouses.
• Wide span and super inner space: Span can be up to 160 meters without beam nor column, excellent for storage of huge volume of materials.
• Safe: Light self-weight (3kg/m2), no work at height. Good performance in areas under the influence of earthquake, strong wind and so on.
• Cost saving : Total investment is 20%~50% less than steel buildings depending on the span (the wider span, the lower unit investment).
• Quick installation: On-site installation is around 15 -30 days.
• Better working Condition: The inner pressure is 250~500Pa higher than outside, which helps the circulation speed inside the dome; Inside air is more easily controlled by the air inflation and filtering system to provide better working condition inside.
• Great flexibility: Easy to be relocated to other locations with no damages to the structure；Structure size can be altered easily to meet the new site requirement.
• Low maintenance: Low in maintenance and related cost, especially in corrosive atmosphere (near the sea, or near smelters) because membrane material has anticorrosive coating.
• Long lifetime: Warranty period of membrane is 15 years. Lifetime of air dome is more than 25 years, normally 35 years.
Green and intelligent building: no construction debris, intelligent control.

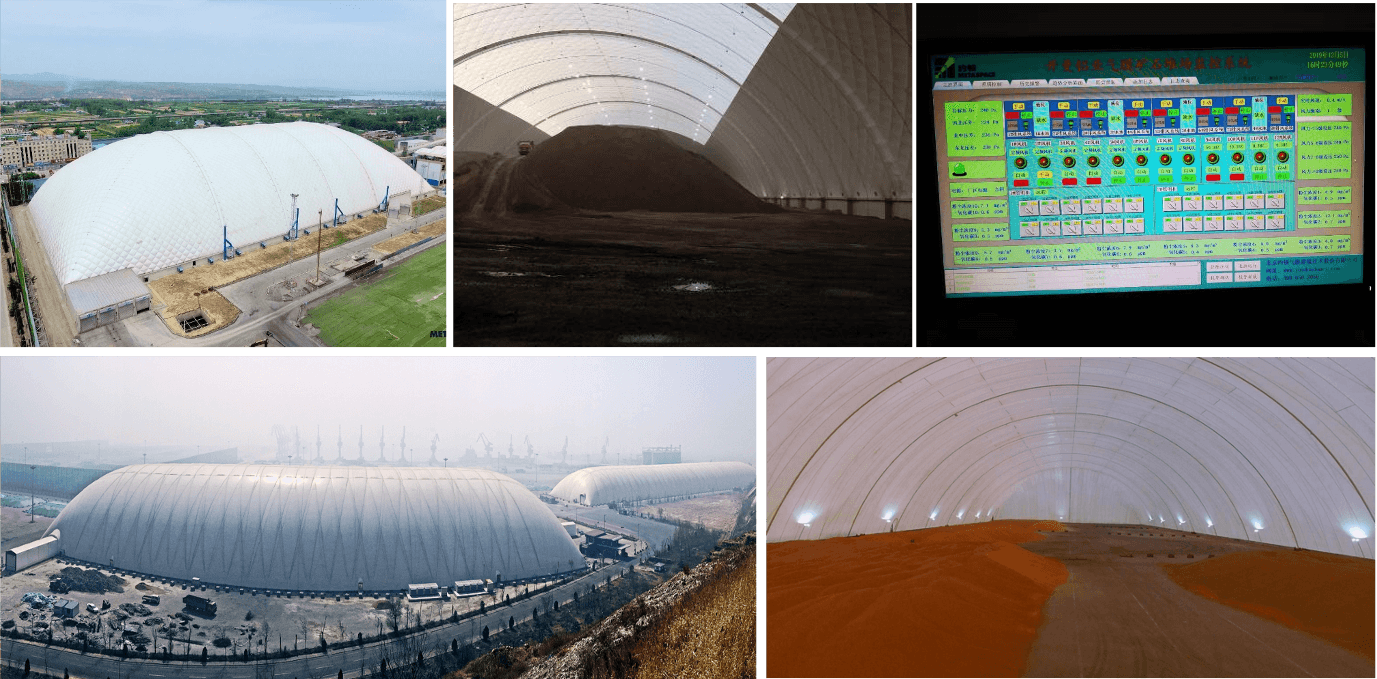

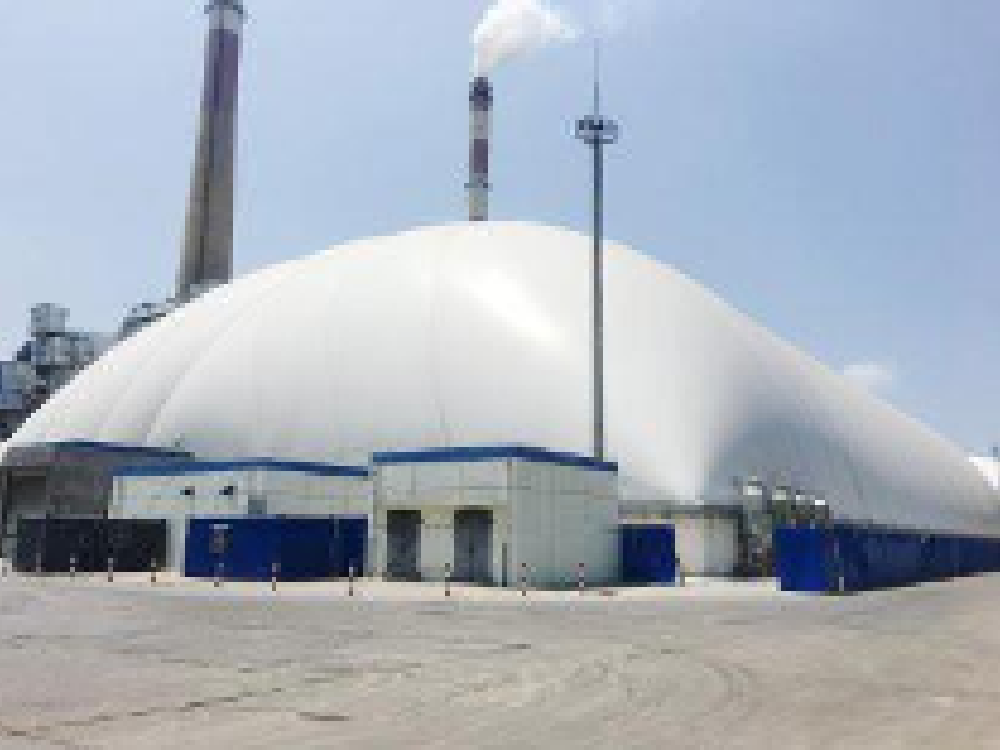

Most
aluminum smelters have their own power plants. Some of the power plants
use coal as fuel. The off-gas from smelters is always corrosive to
steel. And air dome is perfect for coal storage near smelters.
Except
for bauxite and coal, air dome can be used to store anything including
solid waste. Air dome is also widely used at port to store grains and
other material.
