Principal: Zhengzhou Light Metal Technology Co., Ltd.
Key Product: Cell Switches, Bell-type Crucible Cleaner.
Application: Aluminum Smelters.
• Established in 1994 in Zhengzhou, Henan Province, China;
• High-Tech company in development of energy-saving, environment protection technologies & equipment;
• From design to engineering;
• Focus on Aluminum industry;
• Key products/technologies: Cell Switches, Emergency Short Circuit Devices, Crucible Cleaner, Melting and Holding Furnaces, SPL Treatment Technology ……
• Around 80 employees including team leader, Professor LIANG Xuemin, 4 professor level senior engineers, 12 doctors and masters.
• Professor Liang is a famous aluminum electrolysis expert with more 30 years of experience in R&D and management.
•
In aluminum smelter, Cell Switches are used to connect a pot cell a
potline, or to disconnect a cell out of a potline under full current
without power interruption.

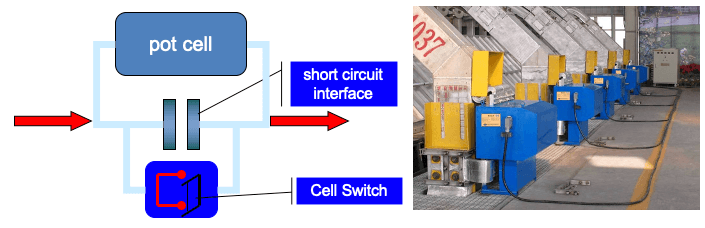

• Cell Switches are specially designed switches parallel connected with a cell at place between anode and cathode.
•
Through shunt function of the switches, short circuit interfaces of
each cell can be safely and easily operated under full current without
power interruption.
• Cell Switches can be customized according to customers’ different situation.
• Application of Cell Switches
• Start up a new potline;
• Shut down one or several cells from a potline for relining;
• Start up one or several cells after relining;
• Emergency application;
• Advantages of Cell Switches
• Very low resistance;
• Excellent heat dissipating ability;
• Excellent conductivity;
• Excellent arc extinguishing design;
• Multi-Protection;
• High synchronization;
• Excellent Anti magnetism;
• Safe and reliable (CE Certification);
• Low cost;
• Low maintenance.
• Simple & easy installation (10 minutes, without modification on cell itself).
• Crucibles need to be cleaned on a regular basis due to accumulated deposits of bath material and aluminum products on the inside walls and bottom. Crucibles are often cleaned manually or with machines after cooling down, which involves more time, more money as well as refractory damage; in addition, operators are exposed to excessive noise and dust.

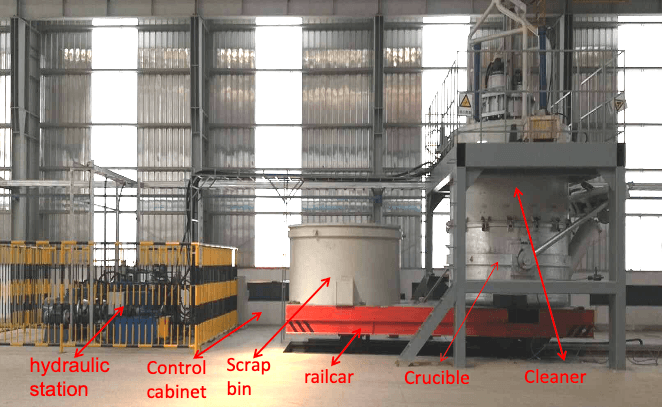

• Bell-type crucible cleaner is a unique cleaning machine that cleans crucibles (ladles) rapidly at temperature less 200℃. Since the equipment operates in automatic mode, there are considerable savings as compared with manual operation.
• Simple and compact. The shell of cleaner tightly covers the crucible vertically without dust emission during operation. There is no need to use tilting device and dust removal system.
• Slag from the crucible is removed and goes the inner barrel of the cleaner directly.
• The cutter head is designed based on the principle of shield machine and is very powerful.
• Cleaning speed and process are automatically controlled.
• Low costs.
• Safe and environment friendly.
• Smaller mobile cleaner is also available.
